RoDon K3 Fire Hydrant Locking System
Rodon K3 Fire Hydrant Locking System
The RoDon Corporation's Rodon K-3 Fire Hydrant Security Lock was designed and engineered to provide two important municipality water security functions. First, to deter unauthorized personnel in accessing a fire hydrant's operating nut and using the hydrant as an inlet connection. Secondly, by incorporating a high intensity refective tape positioned at the top of the "outer shell", fire department personnel will be assisted in immediately locating the so equipped hydrant especially during adverse weather conditions and during night time. The reflective tape band option may also incorporate a color coding system to identify hydrant flow rate (GPM) information.
Item Maintenance: For future ease of operation, we suggest after hydrant flushing to lubricate the lock with a waterproof lubricant. RoDon Corporation utilizes the Boeshield T-9 as the best lubricant for the hydrant lock.
Lock Disclaimer: To prevent any internal tampering utilize lock shackle size 5/16” - 3/8”. RoDon Corporation does not certify the use of any lock shackle smaller than the specified range.
Component Information and Specifications:

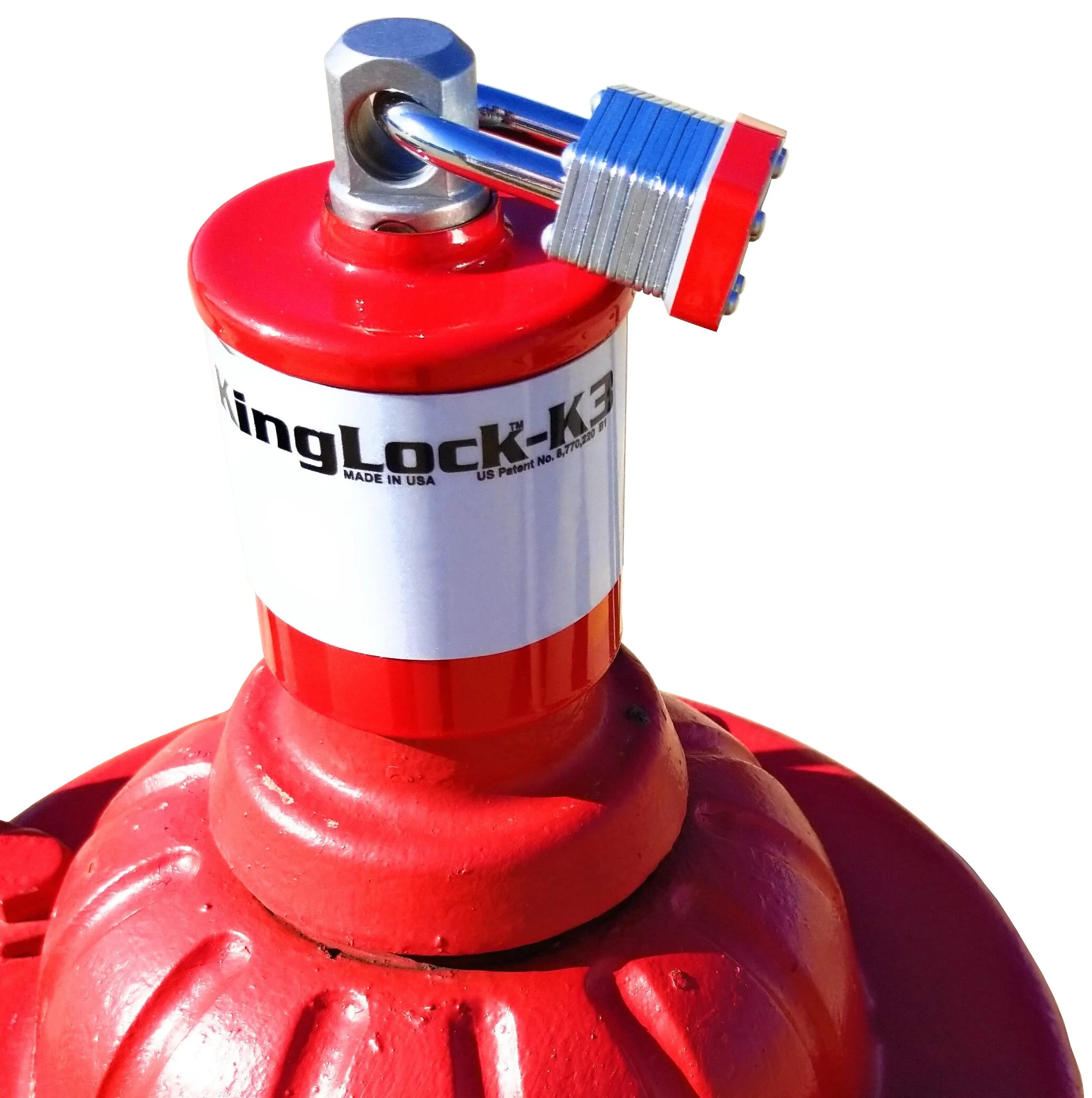

The RoDon Corporation RoDon K3 consists of:
A ductile iron 1 1/2" pentagon operating nut extension with a stainless steel swivel hasp mounts to the hydrants 1 1/2" op nut.
A heavy tubular stell outer shell that conmpletely encloses the inner op nut extension except for the padlock hasp that protrudes through an opening in the top. When installed both the shell and the hasp swivel freely and individually.
Assembled, the K3 lock measures 3" in diameter overall and 6 1/4" high to the top of the swivel hasp.
Available Reflective Color Bands:
Blue for 1500 GPM or more
Green for 1000 - 1499 GPM
Orange for 500 - 599 GPM
Red for below 500 GPM
Black/Red for “out of service” notification
To quickly assist first responders in locating and identifying the K3 security lock during night time and adverse weather conditions, the K3's outer shell is provided with a 2" wide, 360 degree visibility silver/white reflective tape band. In addition, and provided as an option, color bands (2" wide) indicating hydrant flow rates are available and will be positioned beneath the existing silver/white reflective band.
Additional Features & Modifications
Available without reflective band & Out of Service Color Coding
1-1/4 Inch adapter available
Lock Notice
Caution: RoDon Corporation is not responsible for removal of any customer installed locking mechanism. Damaged or rusted locking mechanisms may delay or prevent proper operation of the hydrant. Therefore, select a lock that is best suited for your environment and see that it is maintained and checked on a periodic basis. Customer assumes full responsibility of installation and any consequential problems and damages cauesed by this alteration to the fire hydrant.
